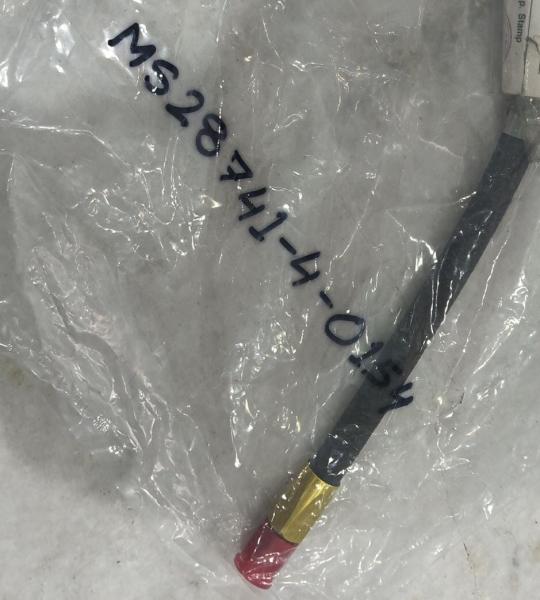

MS28741-4-0154 HOSE ASSY LOWER CO-PILOT-RH
₹ 0 -
( 16.3 (L) x 3.15 (W) x 0.55 (H) Inches INCH)
Standard Hose Assembly
- Recommended Use for Medium Pressure Applications
- Detacheable End Fitting
- Reinforced Corrosion Resistant Steel Braid
- Synthetic Rubber Inner Tube
- Inner Diameter: 0.188 in.
- Outer Diameter: 0.516 in.
- Fitting Orientation: Straight to Straight
- Fitting Material: 0.516
- A Side Nipple Type: 37 Degree Flared
- B Side Nipple Type: 37 Degree Flared
- Burst Pressure: 12000 PSIG
- Fuel Operating Pressure: 1000 PSIG
- Fuel Proof Pressure: 1500 PSIG
- Hydraulic Operating Pressure: 3000 PSIG
- Hydraulic Proof Pressure: 6000 PSIG
- Oil Operating Pressure: 600 PSIG
- Proof Pressure: 1000 PSIG
- Socket Threading: .4375-20 UNJF-3B
- Hose Length: 16.876 in.
- Bend Radius: 3 in.
- Industry Standard Specification: MS28741-0154
Available Sizes :
16.3 (L) x 3.15 (W) x 0.55 (H) Inches - INCH
| Category | Spare Parts | Brand | AFC |
| Part No. | MS28741-4-0154 | OEM Part No. | MS28741-4-0154 |
| Alt Part No. | Country of Origin | USA | |
| Pro Category | Is Return | No |
